Colorimetric Time Indicator

Project Overview

Peripheral intravenous (IV) therapy is used in numerous medical situations to deliver medicine or other fluids directly into a vein. Venous catheters used in these procedures break the skin barrier and prevent the wound from closing, providing an area that can be easily infected. It is important that the IV system is changed every 72 to 96 hours to decrease the chances of infection. A colorimetric time indicator needs to be developed to ensure that the IV system is changed regularly.

Team Picture

From left to right: Ali Johnson , Zeyang Li, Nick Anderson, John Cheadle
From left to right: Ali Johnson , Zeyang Li, Nick Anderson, John Cheadle

Images

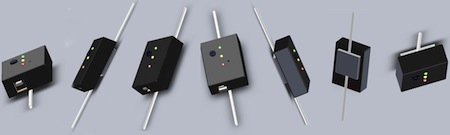

Figure 1: Final prototype model with velcro and rubber attachment:
Figure 1: Final prototype model with velcro and rubber attachment:

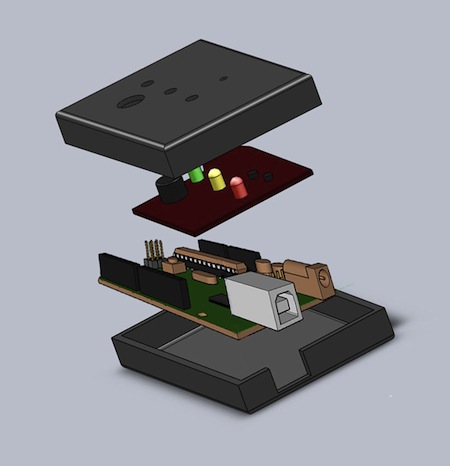

Figure 2: Assembling Prototype From top to bottom: Top part of casing, PCB board, Microprocessor, Bottom part of casing.
Figure 2: Assembling Prototype From top to bottom: Top part of casing, PCB board, Microprocessor, Bottom part of casing.

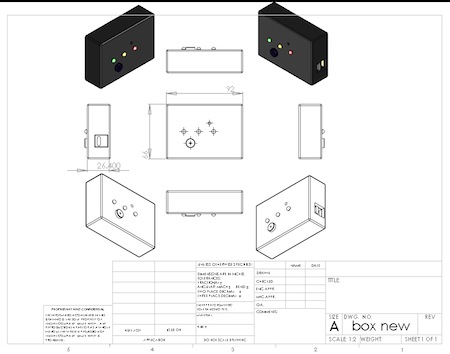

Figure 3: 2-D dimensions of the prototype.
Figure 3: 2-D dimensions of the prototype.

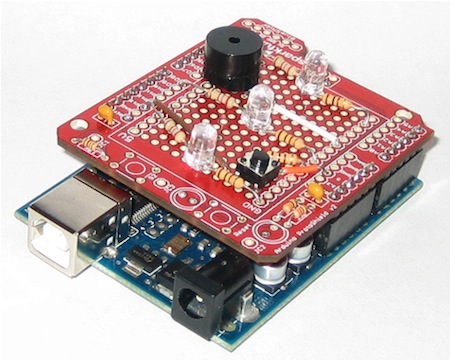

Figure 4: PCB board with Microprocessor
Figure 4: PCB board with Microprocessor

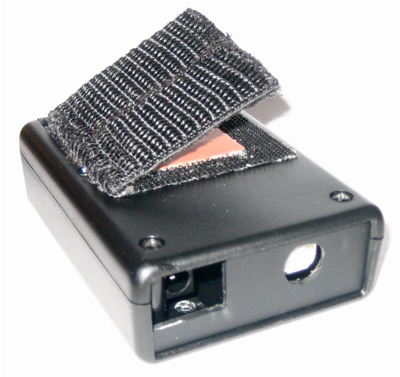

Figure 5: Velcro strap with rubber strip on the back of the final prototype
Figure 5: Velcro strap with rubber strip on the back of the final prototype

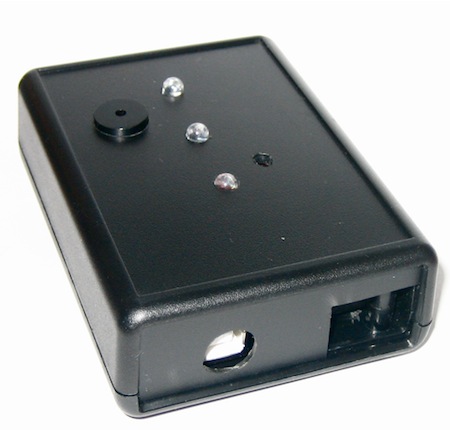

Figure 6: The final prototype
Figure 6: The final prototype

Files

Contact Information

Team Members

  • Allison Johnson - Team Leader
  • John Cheadle - Communicator
  • Nicholas Anderson - BSAC
  • Zeyang Li - BWIG

Advisor and Client

  • Prof. Wan-Ju Li - Advisor
  • Scott Springman - Client
