Heart and Breath Sounds Amplifier
Project Overview
The design is to increase the functionality of the standard medical acoustic stethoscope, replacing the original ear piece with a speaker and earphone, while maintaining the diagnostic capabilities of the original stethoscope design.
Team Picture
![starting from left Jared Ness, Brad Wendorff, Drew Birrenkott, Caleb Durante](/projects/s11/amplifier/image/view/1db63ab7-b325-4c35-8577-af0550b2db31/Photo.gif)
Images

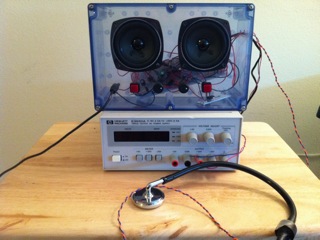

![Complete electronic box with stethoscope attachment powered by a power supply](/projects/s11/amplifier/image/view/34755174-b219-407e-8349-ed361fcc1c8f/photo-2.jpeg)

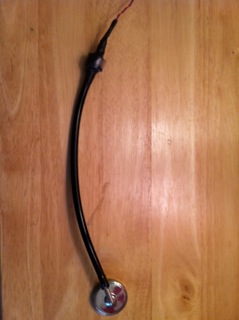

![Stethoscope head with microphone coupling, which leads into the junction box](/projects/s11/amplifier/image/view/0a9ecf91-8ce0-4640-8280-9a2f2b21730d/photo-1.jpeg)

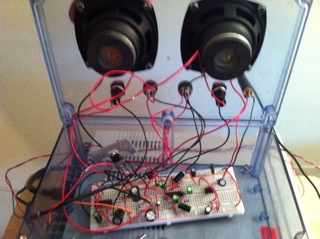

![The signal passes through a series of amplifiers and filters to produce a heartbeat sound through headphones or speakers](/projects/s11/amplifier/image/view/fbe09e7c-b332-4a7c-b27e-43262d82913a/photo-3.jpeg)
Files
- Final Poster (April 29, 2011)
- Final Paper (May 4, 2011)
- Heart and Breath Sound Amplifier Mid Semester Presentation (March 6, 2011)
- Heart and Breath Sound Amplifier PDS (March 9, 2011)
- Heart and Breath Sound Amplifier Mid Semester Paper (March 9, 2011)
